Name |
Type |
P (kW) |
50/60Hz dual |
Tank |
In/Out |
Cooling capacity |
|---|---|---|---|---|---|---|
|
CS35 H |
1 ph |
0,22 |
STD |
8l |
PG Ø9 |
3070÷4090BTU |
|
CS35 V |
1 ph |
0,22 |
STD |
8l |
PG Ø9 |
3070÷4090BTU |
1ph 230V-50/60Hz
P = Pump absorbed - STD = Standard
For clear waters/oils and non-aggressive dilutions, without abrasive substances
Continuous duty S1
2 pole motor
Insulation class F
Protection IP42
Working tolerance: +/-10%
Water dilutions temperature (with anti-freeze additive) -20°C / +90°C
Limit ambient temperature: +40°C
Epoxy powder coating RAL 9017
Special voltages
Other Inlet/OUTlet
Other RAL colours
Customized box
|

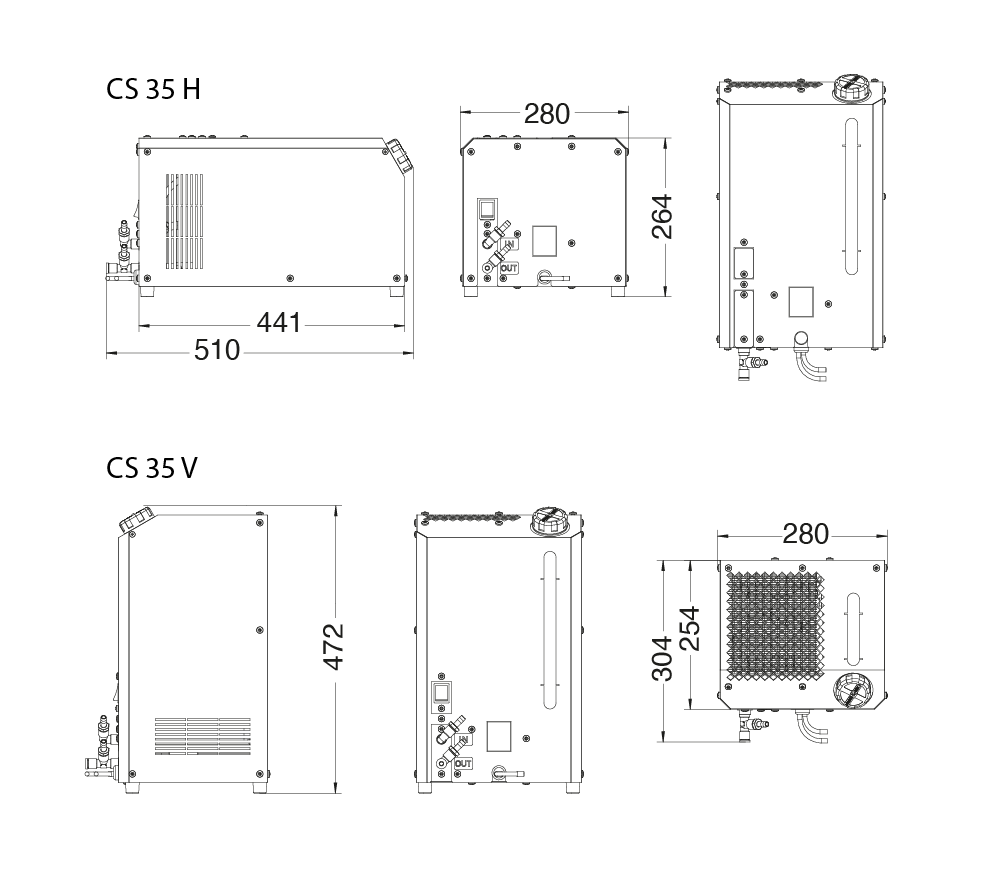

Weight |
|
|---|---|
|
CS35 H |
16kg |
|
CS35 V |
16kg |
Tolerance according ISO 9906-2012.
Hydraulic characteristics for water 20°C at nominal pump speed.
